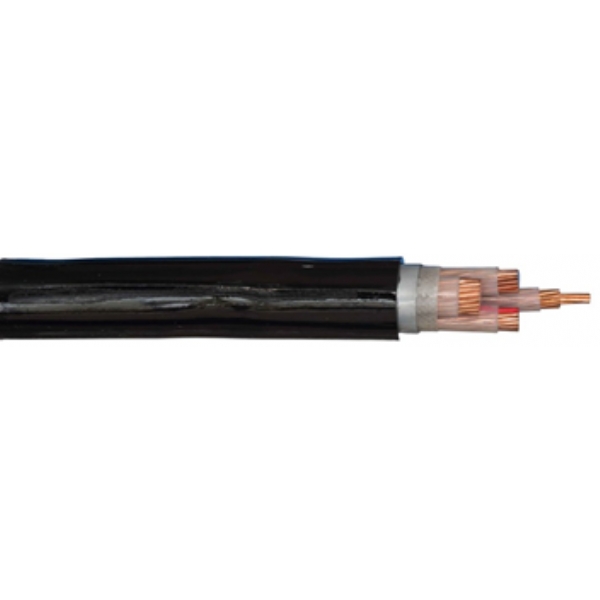

XLPE insulated PVC sheathed power cable.

产品介绍 / Products Detail

Implementation of the standards:
1) This product is designed and manufactured according to GB/T12706-2002.
2) flame retardant power cable accordance with the standards of production enterprises,
flame retardant characteristics meet the requirements GB/T18380.3.
3) fire-resistant power cables manufactured according TO corporate standards,
 including fire-resistant characteristics meet GB/T12666.6 requirements.
 characteristic
1) Long-term allowable working temperature of cable conductor does not exceed 70 ℃.
    Circuit is blocked(the longest duration of no more than 5 seconds),
    The conductor temperature does not exceed 160 ℃;
2) While installation the ambient temperature should not be less than 0 ℃,
     lower than 0 ℃ should be preheated.
     Minimum bending radius of not less than  cable diameter, single-core cables without armor 20 times，
    There with armor-cable 15 times.Three-core cables without armor 15 times, There with armor-cable 12 times
3) DC resistance of conductor shall comply with the provisions of GB/T3956.
4) Power frequency withstand voltage test: 3.5kV/5min without breakdown.
main use
This product is suitable for AC rated voltage 0.6/1kV the circuit,Transmission of electrical energy used.
Flame retardant power cable is suitable  Installed in fire-retardant demanding situations.
Resistant power cable for high-rise buildings, shopping malls and other densely populated areas.
Retardant performance:
1） Retardant cable can withstand GB/T18380.3 prescribed bunched burning test,
2）Smoke density in accordance with the requirements of GB/T17651.1,
3）Combustion gases  precipitated HCL content should be ≤ 100mg / g.
4）resistant cable  can withstand GBA/T12666.6 fire test   requirements.
